Variable Frequency Drives

NAE Positive Displacement Pump

NAE Positive Displacement Pump

NAE Positive Displacement Pump

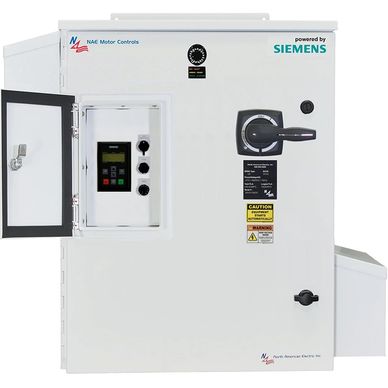

 Pilot Devices
Door Mounted Keypad with Lockable Metal / Solid Protective Cover

Start Pushbutton

Hand / Off / Auto (HOA) Selector Switch

Potentiometer (Speed Pot)

High Visibility Status Light (Red / Yellow / Green)

Human Machine Interface (HMI)7Ó Widescreen Display / Profinet Interface

Standard Features
NEMA 3R / Fully Gasketed / Heavy Duty Advanced Design for Maximum Cooling

Combination Fused Breaker Disconnect:- Through-Door (40HP)

- Flanged (50HP - 500 HP)

Pre-Packaged Drive Solutions for Special Application

- Remote start and speed control capable with analog input

- Line side harmonic

PID Loop Control Capable with Analog Input

Line Side Harmonic Filtering

Lightning & Surge protection covering Monetary Anomaly Events

Line Side - Lightning, Surge, and Severe Over voltage

Load Side - Single Phasing, Phase reversal and Voltage Imbalance

Service Entry Rated

Heavy Duty Lifting Ears

Padlockable Door and Disconnect

UL 508A Certified

Power: 480V: 40 HP - 500 HP

Warranty: Three (3) year warranty with ""Lightning & Surge"" protection INCLUDING NAE's ""No Hassle"" Chassis Exchange Program

Options: Other Options Available

General Purpose

NAE Positive Displacement Pump

NAE Positive Displacement Pump

 Pilot Devices
Door mounted keypad with Lockable Solid Metal Cover

Start Pushbutton

Hand / Off / Auto (HOA) Selector Switch

Potentiometer (Speed Pot)High Visibility Status Light (Red/Yellow/Green)

Standard Features
NEMA 3R / Fully Gasketed / Heavy Duty Padlockable Door and Disconnect

Combination Circuit Breaker Disconnect: Through Door

Pre-Packaged Drive Solutions for General Applications

Remote Start and Speed Control Capable with Analog Input

Line Side Harmonic Filtering

Surge Suppressor

Service Entry Rated

UL 508A Certified

Power: 240V: .75 HP - 60 HP

480V: 1 HP - 700 HP

Warranty: Standard Two (2) Year Warranty or OPTIONAL Three (3) Year Warranty w/ “Lightning & Surge” Protection INCLUDING NAE’s “No Hassle” Chassis Exchange Program

Options: Other Options Available

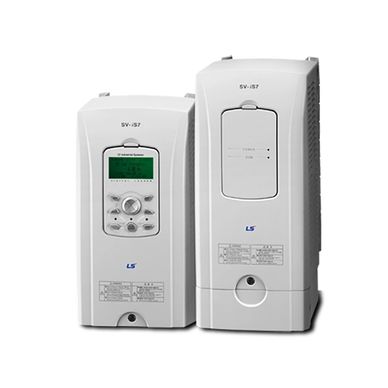

NAE LS Drive Series Chassis

NAE Positive Displacement Pump

WWE Positive Displacement Pump

 Standard Features
NEMA IP00 or NEMA 1-10°C—40°C VT

Three-phase Input

Sensorless Vector or V/Hz Control Capable

Fieldbus and Closed Loop Options

PID Loop Control Capable with Analog Input

Heat Sink Out of the Back Mounting Option (125 HP and Below)UL Listed

Power: Variable/240V: 1 HP - 40 / 480V:

1 HP - 700 HP

Constant/240V: 1 HP - 30 HP/ 480V:

1 HP - 600 HP

Warranty: Two (2) Year Factory Warranty

WWE Positive Displacement Pump

WWE Positive Displacement Pump

WWE Positive Displacement Pump

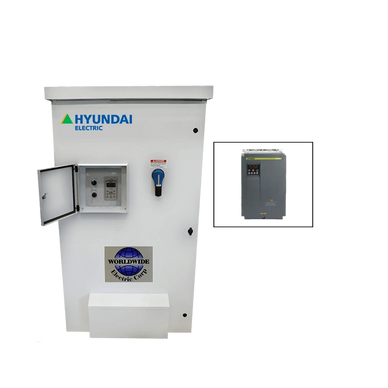

  • 3 HP through 550 HP (Hyundai N700E VFD) • Three-phase or single-phase input

• CT and VT ratings

• Heavy duty NEMA 3R Enclosure

• Hooded (sloped roof), ventilated, filtered

• Heavy duty mounting ears and lifting straps

• Bottom-to-top ventilation (heat-shedding design), Forced-air filtered fans (positive pressure design), Galvanized back panel

• Lockable main door and control cover door

• Padlock disconnect on main CB

• 3% line reactors

• Control transformer with CB protection

• Dual control thermostat

• Door heat strip for keypad

• Full panel surge protection .

• SID1 (Smart Interface Device) with extended functions

• Start / Stop / Reset pushbuttons

• Run / Fault pilot lights

• Hand-Off-Auto selector

• Emergency stop

• Murphy switch input ready (7)

.• NO / NC selectable inputs

• Configurable analog and discrete I/O

• Pre-charge pump timer

• 3 HP through 550 HP (Hyundai N700E VFD)
• Three-phase or single-phase input
• CT and VT ratings
• Heavy duty NEMA 3R Enclosure
• Hooded (sloped roof), ventilated, filtered
• Heavy duty mounting ears and lifting straps
• Bottom-to-top ventilation (heat-shedding design), Forced-air filtered fans (positive pressure design), Galvanized back panel
• Lockable main door and control cover door
• Padlock disconnect on main CB
• 3% line reactors
• Control transformer with CB protection
• Dual control thermostat
• Door heat strip for keypad
• Full panel surge protection
• SID1 (Smart Interface Device) with extended functions
• Start / Stop / Reset pushbuttons
• Run / Fault pilot lights
• Hand-Off-Auto selector
• Emergency stop
• Murphy switch input ready (7)
• NO / NC selectable inputs
• Configurable analog and discrete I/O
• Pre-charge pump timer

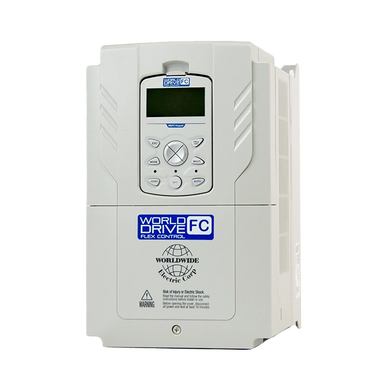

WDFC Drive Chassis

WWE Positive Displacement Pump

WDFC Drive Chassis

 The WDFC gives you the flexibility to do more with more applications from conveyors to pumps and most everything in between, with industry leading on-board feature sets suitable for almost anything you can throw its way.

The WorldDrive Flex Control variable frequency drive is built with V/f, Slip Compensation and Sensorless Vector control and has a commanding footprint in 11 frame sizes: .5HP - 800HP. UL, cUL Listed and CE Certified.• V/f, Sensorless Vector Control, Slip Compensation
• 150% overload for 60 sec, CT
• 120% overload for 60 sec, VT
• 240V, Single-phase, 0.5-10HP
• 240V, Three-phase, 1-25 HP VT

0.5-20 HP CT
• 480V, Three-phase, 1-800 HP VT

650 HP CT
• Input voltage range: 200-240V Single

Three Phase (-15%, +10%)
• Input voltage range: 380-480V

Three Phase (-15%, +10%)
• Output Frequency: 0-400Hz

Sensorless: 0-120Hz
• Carrier Frequency: Normal Duty: 1-15kHz
• Protection degree: NEMA 1 / IP20
• Conformal Coated printed circuit boards
• Built-in: Modbus-RTU
• UL, cUL, CE Certified
• *Table shows Constant Torque Horsepower and Constant Torque Output Current at UL Three-Phase Rating

General Purpose

WWE Positive Displacement Pump

WDFC Drive Chassis

• Door mounted keypad or pilot devices not included with base model

• 2HP through 800HP with Worldwide Electric WDFC Flex Control VFD

• 60 Second Overload ratings: 120% Normal Duty, 150% Heavy Duty

• NEMA 3R Enclosure, hooded roof, filtered forced air cooled & thermostat

• Heavy duty mounting ears and lifting strap, galvanized back panel

• Concealed hinges and lockable door latches

• UL489 Main Circuit Breaker, with lockable disconnect mechanism

• 3% Input Reactors Standard

• Control panel transformer with CB protection • Options available

• Door mounted keypad or pilot devices not included with base model
• 2 HP through 800 HP with Worldwide Electric WDFC Flex Control VFD
• 60 Second Overload ratings:

120% Normal Duty, 150% Heavy Duty
• NEMA 3R Enclosure, hooded roof, filtered forced air cooled & thermostat
• Heavy duty mounting ears and lifting strap, galvanized back panel
• Concealed hinges and lockable door latches
• UL489 Main Circuit Breaker, with lockable disconnect mechanism
• 3% Input Reactors Standard
• Control panel transformer with CB protection
• Available Options Include:

On-Off-Auto Selector Switch;

Speed Potentiometer;

Start/Stop Pushbuttons;

Hand-Off-Auto Selector Switch;

Surge Suppression;

Installed SID1 Text Keypad;

Remote Mount LCD Keypad;

Installed SID7 Operator Interface;

Panel Space Heater (150W);

Green Run Pilot Light;

Amber Fault Pilot Light and Reset Pushbutton; White Drive Ready Pilot Light;

Lockable, solid control door cover;

Lockable, window control door cover;

24/7 timer; 1.3A,

24VDC Power Supply for Loop Power
